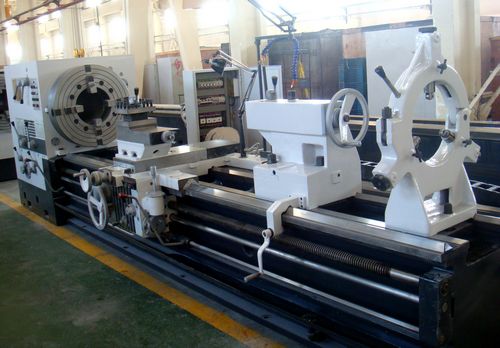

China S1-262A/1500 Pipe Threading Lathe


New, China S1-262A/1500 Pipe Threading Lathe

  • Max. diameter of pipe machine φ114 - 340mm
  • Distance between centres 1500mm
  • Max length of turning (travel over saddle) 1500mm
  • Height from spindle center to ground 1150mm
  • Height from spindle center to guideway surface 450mm
  • Spindle bore dia 355mm
  • Front and rear taper of spindle bore 1:50
  • Spindle speed 5.6 - 254 RPM, off 12
  • Longitudinal and cross feed 0.095 - 1.44 mm/r
  • Longitudinal and cross feed no. of kind 32
  • Whitworth threads 1 - 14 TPI
  • Metric threads 1 - 15mm
  • Module threads 0.5 - 7.5mm
  • Diametric threads 2 - 28 D.P.
  • Vertical distance from spindle center to bearing surface of tool 33mm
  • Section of tool shank 32 x 32mm
  • Swivel angle of middle side ±90°
  • Max travel of top slide 200mm
  • Max travel of cross slide 300mm
  • Cross rapid moving speed of tool post 4 m/min
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
