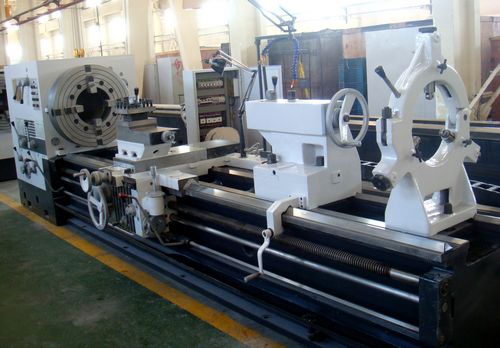

New, China S1-262A/1000 Pipe Threading Lathe
- Max diameter of pipe machine φ 114 - 340mm
- Distance between centers 1000mm
- Max length of turning (travel over saddle) 1000mm
- Height from spindle center to ground 1150mm
- Height from spindle center to guideway surface 450mm
- Spindle bore dia 355mm
- Front and rear taper of spindle bore 1:50
- Spindle speed 5.6 - 254 RPM, off 12
- Longitudinal and cross feed 0.095 - 1.44 mm/r
- Longitudinal and cross feed no. of kind 32
- Whitworth threads 1 - 14 TPI
- Metric threads 1 - 15mm
- Module threads 0.5 - 7.5mm
- Diametric threads 2 - 28 D.P.
- Vertical distance from spindle center to bearing surface of tool 33mm
- Section of tool shank 32 x 32mm
- Swivel angle of middle side ±90°
- Max travel of top slide 200mm
- Max travel of cross slide 300mm
- Cross rapid moving speed of tool post 4 m/min
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
