Zhongyang Sams Lathe

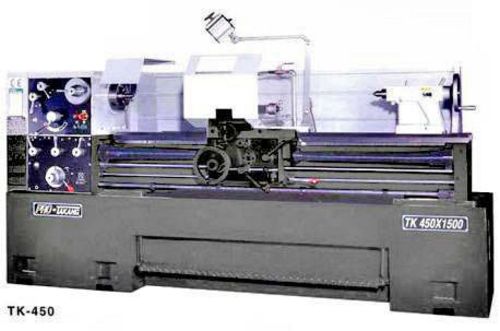

Takang TK450 x 2000 High Speed Precision Lathe


New, Takang TK450 x 2000 High Speed Precision Lathe

  • Swing over bed 450mm
  • Swing over saddle 280mm
  • Swing over gap 640mm (opt.)
  • Between centres 2000mm
  • Spindle bore 56mm
  • Spindle nose D1-6
  • Spindle speeds  (steps) 39 - 2800 RPM (18)
  • Spindle motor (option) 7.5 HP (10 HP)
  • Lead screw 6mm / pitch (4 TPI)
  • Metric / pitch, range (numbers) 0.5 - 7mm (24)
  • Inch, range (numbers) 4 / 56 TPI (36)
  • Module / pitch, range (numbers) 0.25 - 3.5 M (16)
  • DP, range (numbers) 8 - 112 P (36)
  • Longitudinal feeds, mm/rev. 0.06 - 0.88
  • Cross feeds, mm/rev. 0.03 - 0.44
  • Quill diameter / Centre taper 75mm / MT5
  • Travel 170mm
  • Bed width 350mm
  • Cross slide travel 280mm
  • Compound rest travel 120mm
  • Coolant pump motor 1/8 HP
  • Overall Dimensions: 3,290 mm (L) x 1,150 mm (W) x 1,600 mm (H)
  • Weight approximately 3.2 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.

Home | Lathe Listing | New Machinery Categories

Zhongyang is able to retrofit conventional machines with D.R.O. as per your request.


Niles 11' Centre Lathe
Niles Centre Lathe
Between Centres 11'
Swing Over Bed 25"


Facing Lathe, 54 inch Face Plate
Facing Headstock Lathe
Face Plate Diameter 54"


Elliott Concord Gap Bed Lathe
Elliott Concord Gap Bed Lathe
Between Centres 98.1/2"
Swing Over Bed 17.1/2"
