China CA6250A/1500 Gap Bed Lathe

NLLSY342:

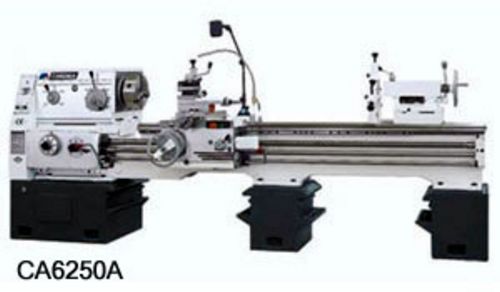

New, China CA6250A/1500 Gap Bed Lathe

  • Between centres 1500mm
  • Swing over bed 500mm
  • Swing over saddle 300mm
  • Swing over gap 720mm
  • Width of gap 210mm
  • Width of bed or hardness: 400mm / RC52
  • Section of turning tool 25 x 25mm
  • Spindle speed range: 11 - 1600 r/min (24 forward); 14 - 1580 r/min (12 reverse)
  • Spindle bore 52mm; nose A6
  • Inner taper of spindle nose Morse No. 6
  • Longitudinal feed of spindle speed per revolution (64 kinds): 0.08 - 1.59 mm/r (normal); 0.028 - 0.054 mm/r (fine); 1.71 - 6.33 mm/r (coarse)
  • Cross feed of spindle speed per revolution (64 kinds): 0.04 - 0.79 mm/r (normal); 0.014 - 0.027 mm/r (fine); 0.86 - 3.16 mm/r (coarse)
  • Travel of cross slide or compound rest: 320mm / 140mm
  • Swing angle of turret turnplate ± 90°
  • Rapid travel of turret: longitudinal 4 m/min; cross rapid speed 2 m/min
  • Travel of tailstock quill 150mm
  • Diameter of tailstock quill 75mm
  • Taper of tailstock quill Morse No. 5
  • Threads: Metric 1 - 192mm (44); Whitworth 2 - 24 TPI (21); Module 0.25 - 48mm (39); Diametric 1 - 96 (37)
  • Main motor 7.5 kW
  • Overall Dimensions: 3,168 mm (L) x 1,037 mm (W) x 1,312 mm (H)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
