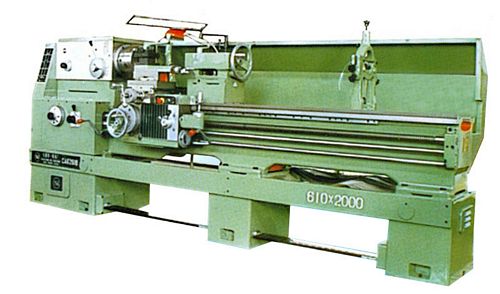

New, China CA6266B/2000 Gap Bed Lathe
- Between centers 2000mm
- Swing over bed 660mm
- Swing over saddle 400mm
- Swing over gap 830mm
- Width of gap 210mm
- Width of bed or hardness: 400mm / RC52
- Section of turning tool 25 x 25mm
- Spindle speed 10 - 1400 r/min (24)
- Spindle bore 80mm; nose D8
- Inner taper of spindle nose Ø90 (1:20)
- Longitudinal feed of spindle speed per revolution (64 kinds): 0.11 - 1.6 mm/r (normal); 0.028 - 0.11 mm/r (fine); 1.76 - 6.4 mm/r (coarse)
- Cross feed of spindle per revolution (64 kinds): 0.05 - 0.8 mm/r (normal); 0.014 - 0.05 mm/r (fine); 0.88 - 3.2 mm/r (coarse)
- Travel of cross slide or compound rest: 420mm / 140mm
- Swing angle of turret turnplate ± 90°
- Rapid travel of turret: longitudinal 4 m/min; cross rapid speed 2 m/min
- Travel / diameter of tailstock quill 150mm / 75mm
- Taper of tailstock quill Morse No. 5
- Threads: Metric 1 - 192mm (44) ; Whitworth 1/2 - 24 TPI (28); Module 0.25 - 48mm (39); Diametric 1/2 - 96 DP (38)
- Main motor 7.5 Kw
- Overall Dimensions: 3,668 mm (L) x 1,130 mm (W) x 1,392 mm (H)
- Weight approximately 2.8 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
