China CA6261C/2000 Gap Bed Lathe

NLLSY338:

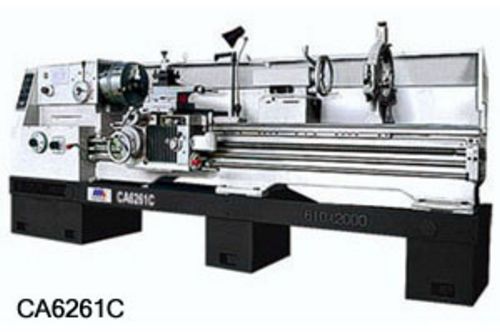

New, China CA6261C/2000 Gap Bed Lathe

  • Swing over bed 610mm
  • Between centers 2000mm
  • Swing over saddle 370mm
  • Swing over gap 830mm
  • Width of gap 210mm
  • Width of bed or hardness: 400mm / RC52
  • Section of turning tool 25 x 25mm
  • Spindle speed 14 - 1250 r/min (24)
  • Spindle bore 104mm; nose D11
  • Inner taper of spindle nose Ø120 (1:20)
  • Longitudinal feed of spindle speed per revolution (64 kinds): 0.11 - 1.6 mm/r (normal); 0.028 - 0.11 mm/r (fine); 1.76 - 6.4 mm/r (coarse)
  • Cross feed of spindle per revolution (64 kinds): 0.05 - 0.8 mm/r (normal); 0.014 - 0.05 mm/r (fine); 0.88 - 3.2 mm/r (coarse)
  • Travel of cross slide or compound rest: 420mm / 140mm
  • Swing angle of turret turnplate ± 90°
  • Rapid travel of turret: longitudinal 4 m/min; cross rapid speed 2 m/min
  • Travel / diameter of tailstock quill 150mm / 75mm
  • Taper of tailstock quill Morse No. 5
  • Threads: Metric 1 - 192mm (44); Whitworth 1/2 - 24 TPI (28); Module 0.25 - 48mm (39); Diametric 1/2 - 96 DP (38)
  • Main motor 7.5 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
