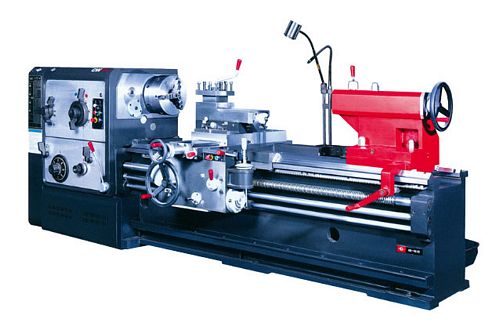

China CW6293B/4000 Gap Bed Lathe

NLLSY302:

New, China CW6293B/4000 Gap Bed Lathe

  • Between centers 4000mm
  • Swing over bed 930mm
  • Swing over saddle 650mm
  • Swing in gap 1100mm
  • Width of gap 300mm
  • Spindle bore and nose Ø104; D11
  • Taper in spindle nose and centre Ø120
  • Range of spindle speed 6-800 r/min (18 kinds)
  • Range of longitudinal feed 0.05-24.3 mm/r (64 kinds)
  • Range 1:1 = 0.1-1.52 mm/r
  • Range 16:1 = 1.6-24.3 mm/r
  • Range of fine feed with change gears 0.05-0.912 mm/r
  • Longitudinal and cross feed rate 1/2
  • Rapid traverse of carriage 4000 mm/min
  • Lead screw pitch 12 (Metric); 1/2"
  • Threads: Metric 1-240 mm (50 kinds); Inch 14-1 TPI (26 kinds); Module 0.5-120 mm (53 kinds); Diametric 28-1 DP (24 kinds)
  • Max cross travel of lower slide 500mm
  • Max travel of top slide 200mm
  • Max travel of quill of tailstock 250mm
  • Taper of quill of tailstock Morse No. 5
  • Width and hardness of bed guideways 550mm; RC52
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
