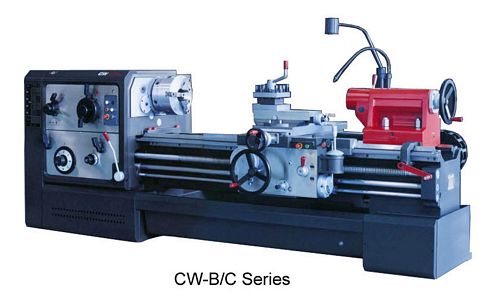

New, China CW6193C/3000 Straight Bed Lathe
- Between centers 3000mm
- Swing over bed 930mm
- Swing over saddle 650mm
- Spindle bore and nose Ø130; D11
- Taper in spindle nose and centre Ø140; Morse No. 5
- Range of spindle speed 8.5-800 r/min (18 kinds)
- Range of longitudinal feed 0.05-24.3 mm/r (64 kinds)
- Range 1:1 = 0.1-1.52 mm/r
- Range 16:1 = 1.6-24.3 mm/r
- Range of fine feed with change gears 0.05-0.912 mm/r
- Longitudinal and cross feed rate 1/2
- Rapid traverse of carriage 4000 mm/min
- Lead screw pitch 12 (Metric); 1/2"
- Threads: Metric 1-240 mm (50 kinds); Inch 14-1 TPI (26 kinds); Module 0.5-120 mm (53 kinds); Diametric 28-1 DP (24 kinds)
- Max cross travel of lower slide 500mm
- Max travel of top slide 200mm
- Max travel of quill of tailstock 250mm
- Taper of quill of tailstock Morse No. 5
- Width and hardness of bed guideways 550mm; RC52
- Main motor 11 kW
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
