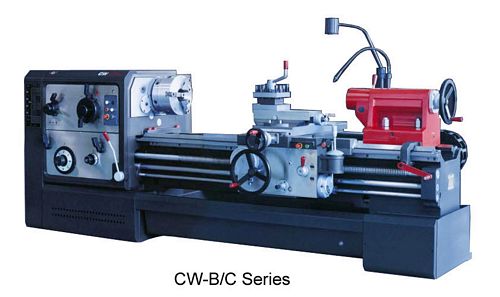

China CW6163B/7000 Straight Bed Lathe

NLLSY259:

New, China CW6163B/7000 Straight Bed Lathe

  • Between centers 7000mm
  • Swing over bed 630mm
  • Swing over saddle 350mm
  • Spindle bore and nose Ø104; D11
  • Taper in spindle nose and centre Ø120
  • Range of spindle speed 7.5-1000 r/min (18 kinds)
  • Range of longitudinal feed 0.05-24.3 mm/r (64 kinds)
  • Range 1:1 = 0.1-1.52 mm/r
  • Range 16:1 = 1.6-24.3 mm/r
  • Range of fine feed with change gears 0.05-0.912 mm/r
  • Longitudinal and cross feed rate 1/2
  • Rapid traverse of carriage 4000 mm/min
  • Lead screw pitch 12 (Metric); 1/2"
  • Threads: Metric 1-240 mm (50 kinds); Inch 14-1 TPI (26 kinds); Module 0.5-120 mm (53 kinds); Diametric 28-1 DP (24 kinds)
  • Max cross travel of lower slide 420mm
  • Max travel of top slide 200mm
  • Max travel of quill of tailstock 250mm
  • Taper of quill of tailstock Morse No. 5
  • Width and hardness of bed guideways 550mm; RC52
  • Main motor 11 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
