Sunshine Innovation Sams Lathe

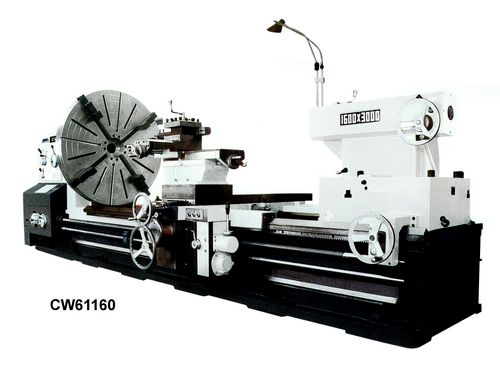

China CW61160/11000 Straight Bed Lathe

NLLSY248:

New, China CW61160/11000 Straight Bed Lathe

  • Between centers 11,000mm
  • Swing over bed 1600mm
  • Swing over saddle 1200mm
  • Spindle bore 130mm, A2-15
  • Taper of spindle nose Metric 140
  • Type of spindle speed: (forward) 21 kinds; (reverse) 12 kinds
  • Range of spindle speeds: 2-200 r/min (forward); 2.24-178 r/min (reverse)
  • Range of feed 56 kinds
  • Longitudinal 0.1-12 mm; Cross 0.05-6 mm; Upper turret 0.025-3 mm
  • Threads: Metric 1-120 mm (44 kinds); Inch 24-1/4 TPI (31 kinds); Module 0.5-60 mm (45 kinds); Diametric 1/2-56 DP (38 kinds)
  • Max travel of saddle L-200
  • Max cross travel of lower turret 960mm; middle turret 300mm; upper turret 200mm
  • Rapid travel of turret: Longitudinal 3740 mm/min; Cross 1870 mm/min
  • Middle turret 935 mm/min
  • Diameter / travel of tailstock quill: 180mm / 300mm
  • Taper of quill of tailstock Metric 80
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
