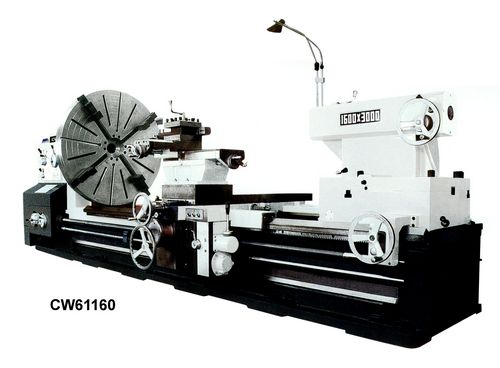

China CW61160/5000 Straight Bed Lathe


New, China CW61160/5000 Straight Bed Lathe

  • Between centers 5000mm
  • Swing over bed 1600mm
  • Swing over saddle 1200mm
  • Spindle bore 130mm, A2-15
  • Taper of spindle nose Metric 140
  • Type of spindle speed (forward) 21 kinds; (reverse) 12 kinds
  • Range of spindle speeds: 2-200 r/min (forward); 2.24-178 r/min (reverse)
  • Range of feed 56 kinds
  • Longitudinal 0.1-12 mm; Cross 0.05-6 mm; Upper turret 0.025-3 mm
  • Threads: Metric 1-120 mm (44 kinds); Inch 24-1/4 TPI (31 kinds); Module 0.5-60 mm (45 kinds); Diametric 1/2-56 DP (38 kinds)
  • Max travel of saddle L-200
  • Max cross travel of lower turret 960mm; middle turret 300mm; upper turret 200mm
  • Rapid travel of turret: Longitudinal 3740 mm/min; Cross 1870 mm/min
  • Middle turret 935 mm/min
  • Diameter / travel of tailstock quill: 180mm / 300mm
  • Taper of quill of tailstock Metric 80
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
