China CA6166B Conventional Lathe

NLLSY216:

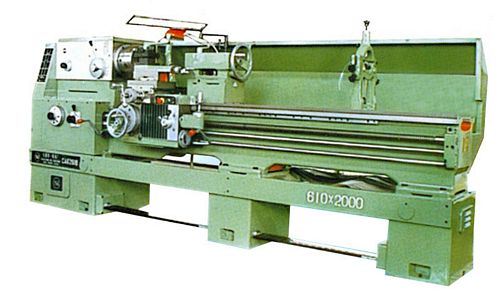

New, China CA6166B Conventional Lathe

  • Swing over bed 660mm
  • Swing over saddle 400mm
  • Between centers 750/650mm, 1000/900mm, 1500/1400mm, 2000/1900mm, 3000/2900mm
  • Width of bed or hardness: 400mm / RC52
  • Section of turning tool 25 x 25mm
  • Spindle speed 10 - 1400 r/min (24)
  • Spindle bore 80mm; nose A28
  • Inner taper of spindle nose .90 (1:20)
  • Longitudinal feed of spindle speed per revolution (64 kinds):               0.11 - 1.6 mm/r (normal); 0.028 - 0.11 mm/r (fine); 1.76 - 6.4 mm/r (coarse)
  • Cross feed of spindle per revolution (64 kinds):                           0.05 - 0.8 mm/r (normal); 0.014 - 0.05 mm/r (fine); 0.88 - 3.2 mm/r (coarse)
  • Travel of cross slide or compound rest: 420 / 140mm
  • Swing angle of turret turnplate ± 90°
  • Rapid travel of turret: longitudinal 4 m/min; cross rapid speed 2 m/min
  • Travel of tailstock quill 150mm
  • Diameter of tailstock quill 75mm
  • Taper of tailstock quill Morse No. 5
  • Threads: Metric 1 - 192mm; Whitworth 1/2 - 24 TPI                      Module 0.25 - 48mm; Diametric 1/2 - 96 DP
  • Main motor 7.5 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
