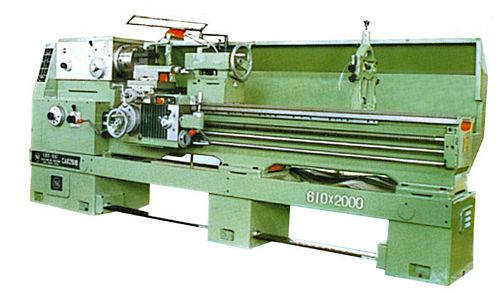

New, China CA6261A Gap Bed Lathe
- Swing over bed 610mm
- Swing over saddle 370mm
- Swing over gap 830mm
- Width of gap 210mm
- Between centers 1000/900mm, 1500/1400mm, 2000/1900mm, 3000/2900mm
- Width of bed or hardness: 400mm / RC52
- Section of turning tool 25 x 25mm
- Spindle speed range: 11 - 1600 r/min (24 forward); 14 - 1580 r/min (12 reverse)
- Spindle bore 52mm; nose A6
- Inner taper of spindle nose Morse No. 6
- Longitudinal feed of spindle speed per revolution (64 kinds): 0.08 - 1.59 mm/r (normal); 0.028 - 0.054 mm/r (fine); 1.71 - 6.33 mm/r (coarse)
- Cross feed of spindle speed per revolution (64 kinds): 0.04 - 0.79 mm/r (normal); 0.014 - 0.027 mm/r (fine); 0.86 - 3.16 mm/r (coarse)
- Travel of cross slide or compound rest: 420mm / 140mm
- Swing angle of turret turnplate ± 90°
- Rapid travel of turret: longitudinal 4 m/min; cross rapid speed 2 m/min
- Travel of tailstock quill 150mm
- Diameter of tailstock quill 75mm
- Taper of tailstock quill Morse No. 5
- Threads: Metric 1 - 192mm (44); Whitworth 2 - 24 TPI (21); Module 0.25 - 48mm (39); Diametric 1 - 96 DP (37)
- Main motor 7.5 Kw
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
