China CA6136 Conventional Lathe

NLLSY205:

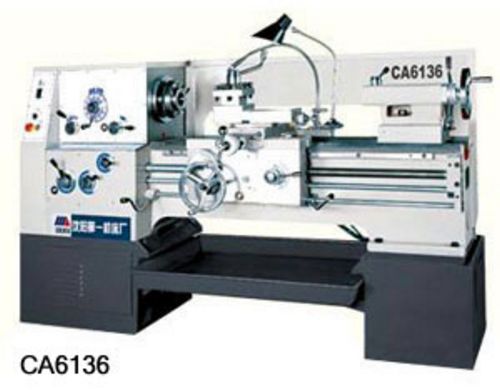

New, China CA6136 Conventional Lathe

  • Swing over bed 360mm
  • Swing over saddle 210mm
  • Between centres 750/650mm, 1000/900mm
  • Width or hardness of bed 324; HB200
  • Section of turning tool 20 x 20mm
  • Spindle speed range: 37 - 1600 rpm (12 forward); 102 - 1570 rpm (6 reverse)
  • Spindle bore 53mm; nose C6 or D6
  • Inner taper of spindle nose 1:19.18
  • Longitudinal feed of spindle per revolution: 0.05 - 1.6 mm/r (40 kinds)
  • Cross feed of spindle per revolution: 0.04 - 1.28 mm/r (40 kinds)
  • Travel of cross slide/compound slide: 200mm/140mm
  • Swing angle of turret turnplate ± 90°
  • Travel/diameter of tailstock quill: 140mm/60mm
  • Taper of tailstock quill Morse No. 4
  • Threads: Metric 0.5 - 10 mm (19); Whitworth 1.3/4 - 40 TPI (29); Module 0.25 - 5 mm (14);   Diametric 3.1/2 - 80 DP (24)
  • Main motor 4 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
