China S1-245B Pipe Threading Lathe

NLLSY203:

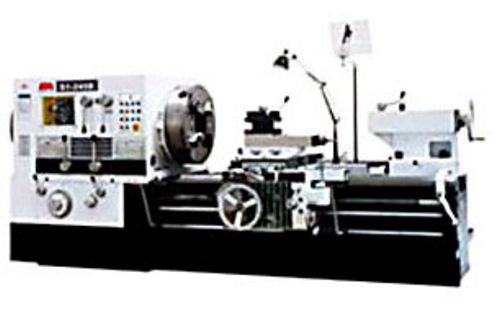

New, China S1-245B Pipe Threading Lathe

  • Distance Between Center and Flat Guideway 400mm
  • Outer diameter of turning pipe 60-219mm
  • Max Turning Length of Workpiece 1000/1500mm
  • Max Center Distance (for tailstock) 1000/1500mm
  • Height from Spindle Center to Ground 1100mm
  • Spindle Bore 240mm
  • Front and Rear Taper Bore 1:50
  • Spindle Speeds 8-306 RPM, off 12
  • Longitudinal and Cross Feeds 0.095-1.44mm, (32 kinds)
  • Whitworth Threads 1-14 TPI
  • Metric Threads 1-15mm
  • Module Threads 0.5-7.5mm
  • Diametric Threads 28-2 t/in
  • Vertical Distance From Spindle Taper to Bearing Surface of Tool 33mm
  • Section of Tool Shank 32x32 mm
  • Swivel Angle of Mid Side ±90°
  • Max Travel of Top Slide 200mm
  • Max Travel of Cross Slide 300mm
  • Cross Rapid Moving Speed of Tool Post 4 m/min
  • Max Length of Taper Continuous Turning Workpiece 500mm
  • Max Length of Cross Moving 100mm
  • Tailstock Quill Diameter 100mm
  • Tailstock Quill Travel 250mm
  • Distance of Cross Moving of Tailstock ±15mm
  • Main Motor 18.5 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
