Sunshine Innovation Sams Lathe

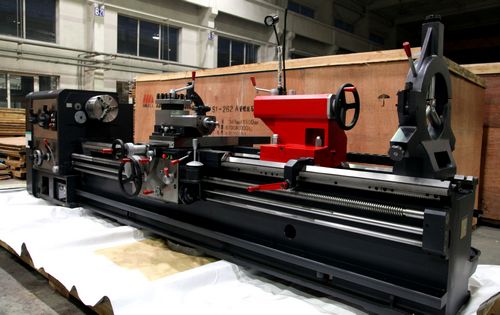

China CW62110B/5000 Gap Bed Lathe (New Design)

NLLSY023:

New, China CW62110B/5000 Gap Bed Lathe (New Design)

  • Between centers 5000mm
  • Swing over bed 1100mm
  • Swing over saddle 800mm
  • Swing in gap 1300mm
  • Width of gap 310mm
  • Spindle bore and nose Ø104; D11
  • Taper in spindle nose and centre Ø120
  • Range of spindle speed 4.8-640 r/min (18 kinds)
  • Range of longitudinal feed 0.05-24.3 mm/r (64 kinds)
  • Range 1:1 = 0.1-1.52 mm/r
  • Range 16:1 = 1.6-24.3 mm/r
  • Range of fine feed with change gears 0.05-0.76 mm/r
  • Longitudinal and cross feed rate 1/2
  • Rapid traverse of carriage 4000 mm/min
  • Lead screw pitch 12 (Metric); 1/2"
  • Threads: Metric 1-240 mm (50 kinds); Inch 14-1 TPI (26 kinds); Module 0.5-120 mm (53 kinds); Diametric 28-1 DP (24 kinds)
  • Max cross travel of lower slide 500mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
