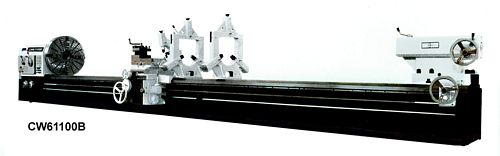

China CW61100B/1500 Straight Bed Lathe

NLLSY017:

New, China CW61100B/1500 Straight Bed Lathe

  • Between centers 1500mm
  • Swing over bed 1000mm
  • Swing over saddle 610mm
  • Spindle bore 130mm, A2-15
  • Taper of spindle nose Metric 140
  • Type of spindle speed: (forward) 21 kinds; (reverse) 12 kinds
  • Range of spindle speeds: 3.15-315 r/min (forward); 3.5-278 r/min (reverse); 2-200 r/min (forward); 2.24-178 r/min (reverse)
  • Range of feed 56 kinds
  • Longitudinal 0.1-12 mm; Cross 0.05-6 mm; Upper turret 0.025-3 mm
  • Threads: Metric 1-120 mm (44 kinds); Inch 24-1/4 TPI (31 kinds); Module 0.5-60 mm (45 kinds); Diametric 1/2-56 DP (38 kinds)
  • Max travel of saddle L-50
  • Max cross travel of lower turret 520mm; upper turret 300mm
  • Rapid travel of turret: Longitudinal 3740 mm/min; Cross 1870 mm/min
  • Middle turret 935 mm/min
  • Quill of tailstock diameter 160mm
  • Max travel of quill of tailstock 300mm
  • Taper of quill of tailstock Morse No. 6
  • Width of bed 755mm
  • Max torque 12.85 KN.m
  • Max weight of workpiece 5000 kg
  • Main motor 22 kW
  • Overall Dimensions: 4,600 mm (L) x 2,150 mm (W) x 1,700 mm (H)
  • Weight approximately 9.2 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
