China CW61110C/1500 Straight Bed Lathe

NLLSY014:

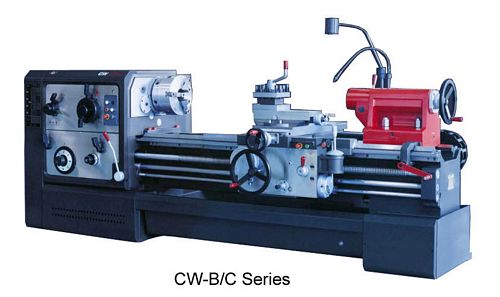

New, China CW61110C/1500 Straight Bed Lathe

  • Between centers 1500mm
  • Swing over bed 1100mm
  • Swing over saddle 800mm
  • Spindle bore and nose Ø130; D11
  • Taper in spindle nose and centre Ø140; Morse No. 5
  • Range of spindle speed 4.8-640 r/min (18 kinds)
  • Range of longitudinal feed 0.05-24.3 mm/r (64 kinds)
  • Range 1:1 = 0.1-1.52 mm/r
  • Range 16:1 = 1.6-24.3 mm/r
  • Range of fine feed with change gears 0.05-0.76 mm/r
  • Longitudinal and cross feed rate 1/2
  • Rapid traverse of carriage 4000 mm/min
  • Lead screw pitch 12 (Metric); 1/2"
  • Threads: Metric 1-240 mm (50 kinds); Inch 14-1 TPI (26 kinds); Module 0.5-120 mm (53 kinds); Diametric 28-1 DP (24 kinds)
  • Max cross travel of lower slide 500mm
  • Max travel of top slide 200mm
  • Max travel of quill of tailstock 250mm
  • Taper of quill of tailstock Morse No. 5
  • Width and hardness of bed guideways 600mm; RC52
  • Main motor 11 or 15 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
