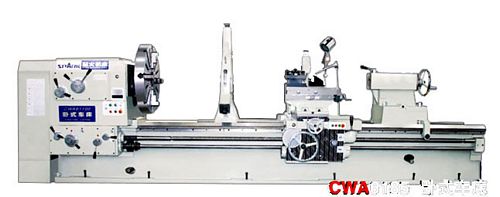

China CWA62100/4000 Engine Lathe


New, China CWA62100/4000 Engine Lathe

  • Between centers 4000mm
  • Swing over bed 1000mm
  • Swing over cross slide 720mm
  • Swing over gap 1350mm
  • Gap width from chuck 470mm
  • Max length to be cut 3800mm
  • Width of guideway 600mm
  • Max weight of workpiece 4000 kgs
  • Spindle nose ISO A2-11
  • Spindle bore 100mm
  • Spindle speeds 5-630 RPM (4 steps)
  • No. of feeds and ranges: 64
  • Longitudinal 0.08-9.6mm; Cross slide 0.04-4.8mm; Compound slide 0.02-2.4mm
  • No. and range of threads: Metric 1-120mm (56 kinds); Inch 30-1/4 TPI (56 kinds); Module 0.5-60 (56 kinds); Diametrical 60-0.5 (56 kinds)
  • Rapid traverse speed: Longitudinal 3640 mm/min; Cross 1800 mm/min; Tool post 900 mm/min
  • Max travel of cross slide / tool post: 600mm / 250mm
  • Diameter / travel of tailstock quill: 120mm / 250mm
  • Taper hole of tailstock quill: Morse No. 6
  • Main motor with inverter 18.5 kw
  • Rapid motor 1.5 kw
  • Pump motor 0.55 kw
  • Cooling motor 0.15 kw
  • Overall Dimensions: 6,150 mm (L) x 1,600 mm (W) x 1,600 mm (H)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
