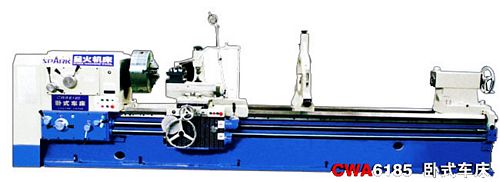

China CWA6285/3000 Conventional Lathe

NLLSP012:

New, China CWA6285/3000 Conventional Lathe

  • Max length of workpiece 3000mm
  • Swing over bed 850mm
  • Swing over cross slide 520mm
  • Swing over gap 1150mm
  • Gap width from chuck 470mm
  • Width of guideway 600mm
  • Max weight of workpiece 4000 kgs
  • Spindle nose ISO A2-11
  • Spindle bore 100mm
  • Spindle taper hole: Metric No. 120
  • Spindle speeds 5-630 RPM (4 steps)
  • No. of feeds and ranges: 64
  • Longitudinal 0.08-9.6mm; Cross slide 0.04-4.9mm; Compound slide 0.02-2.4mm
  • No. and range of threads: Metric 1-120mm (56 kinds); Inch 30-1/4 TPI (56 kinds); Module 0.5-60 (56 kinds); Diametrical 60-0.5 (56 kinds)
  • Rapid traverse speed: Longitudinal 3640 mm/min; Cross 1800 mm/min; Tool post 900 mm/min
  • Max travel of cross slide / tool post: 600mm / 250mm
  • Diameter / travel of tailstock quill: 120mm / 250mm
  • Taper hole of tailstock quill: Morse No. 6
  • Main motor with inverter 15 kw
  • Rapid motor 1.5 kw
  • Pump motor 0.55 kw
  • Cooling motor 0.15 kw
  • Overall Dimensions: 5,015 mm (L) x 1,395 mm (W) x 1,365 mm (H)
  • Weight approximately 5.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
