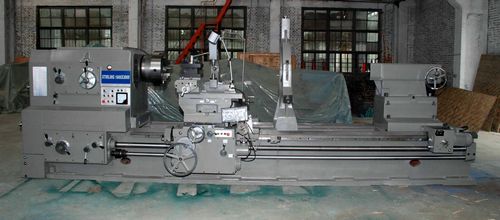

China CW61160/14000 Larged Sized Engine Lathe

NLLSP011:

New, China CW61160/14000 Larged Sized Engine Lathe

  • Between centers 14,000mm
  • Swing over bed 1600mm
  • Max machining length 13,800mm
  • Max swing over carriage 1280mm
  • Max width of bedways 970mm
  • Max supporting weight of centers 6000 kg
  • Spindle nose ISO A2-15
  • Taper in spindle: Metric No. 140
  • Spindle bore 130mm
  • Spindle speeds 2.5-250 rpm, 21 steps
  • Travel of cross slide 880mm; middle slide 400mm; upper slide 200mm
  • Rapid traverse (mm/min): longitudinal 3740; cross slide 1870; middle slide 935
  • No. of feeds 97
  • Range of feeds: longitudinal 0.064-12mm; cross slide 0.032-6mm; middle slide 0.016-3mm
  • No. and range of metric threads: 1-120mm (45 kinds)
  • No. and range of inch threads: 30-1/4 TPI (42 kinds)
  • No. and range of module threads 0.5-60 (46 kinds)
  • No. and range of diametric threads: 60-0.5 DP (48 kinds)
  • Taper in tailstock quill: Metric No. 80
  • Max travel of tailstock quill 300mm
  • Main motor AC22 kw
  • Rapid motor 1.5 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
