China CW61180/1x7000 Heavy Duty Lathe

NLLSP010:

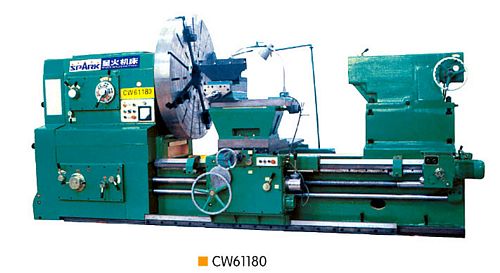

New, China CW61180/1x7000 Heavy Duty Lathe

  • Swing over bed 1800mm
  • Between centres 7000mm
  • Max machining length 6800mm
  • Max swing over carriage 1400mm
  • Width of bed 1100mm
  • Max supporting weight of centres 10,000 kg
  • Spindle nose ISO A2-15
  • Taper in spindle Metric No. 140
  • Spindle bore 130mm
  • Spindle speeds 2-200 rpm, 21 steps
  • No. of feeds and ranges 97: Longitudinal 0.064-12 mm; Cross slide 0.032-6 mm; Compound slide with automatic feed 0.016-3 mm
  • Range of threads: Metric 1-120mm (45 kinds); Inch 30-1/4 TPI (42 kinds); Module 0.5-60 (46 kinds); Diametric 60-0.5 (48 kinds)
  • Rapid traverse: Longitudinal 3740 mm/min; Cross slide 1870 mm/min; Compound rest 935 mm/min
  • Cross slide travel 880mm; Compound travel 400mm; Top rest travel; 200mm
  • Taper of tailstock sleeve Morse No. 6
  • Max movement of tailstock sleeve 300mm
  • Main motor 30 kw
  • Rapid motor 1.5 kw
  • Pump motor 0.55 kw
  • Cooling motor 0.15 kw, 45 L/min
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
