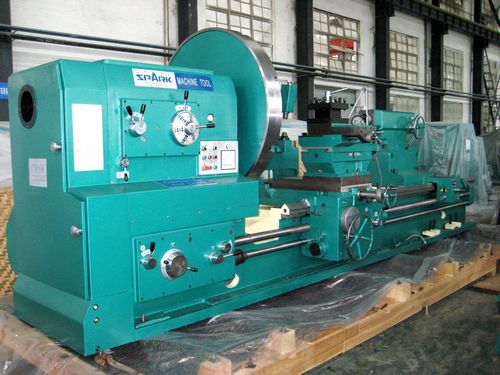

China CW62160/3000 Large Size Engine Gap Bed Lathe


New, China CW62160/3000 Large Size Engine Gap Bed Lathe

  • Between centers 3000mm
  • Swing over bed 1600mm
  • Swing over carriage 1280mm
  • Swing over gap 2110mm
  • Width of gap 610mm
  • Max machining length 3800mm
  • Width of bedways 970mm
  • Max weight between centers 10,000 kg
  • Spindle nose ISO A2-15
  • Spindle taper: metric no. 140
  • Spindle bore 100mm
  • Spindle speeds 2.5 - 250 rpm (21 steps)
  • Travel of cross slide 880, middle slide 400mm, upper slide 200mm
  • Rapid traverse (longitudinal) 3740 mm/min, cross slide 1870 mm/min, top slide 935 mm/min
  • No. and range of feeds: no. 97
  • Longitudinal 0.064 to 12 mm, cross slide 0.032 to 6 mm, top slide 0.016 - 3 mm
  • No. and range threads: metric 1 - 120 mm (45 kinds), inch 30 - 1/4 TPI (42 kinds), module 0.5 - 60 (46 kinds), diametric 60 - 0.5 DP (48 kinds)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
