China LY6280Y/3000 Lathe

NLLSJ004:

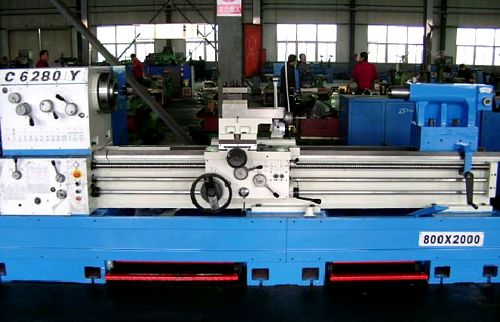

New, China LY6280Y/3000 Lathe

  • Between centers 3000mm
  • Swing over bed 800mm
  • Swing over cross slide 545mm
  • Swing over gap 1000mm
  • Effective length of gap 280mm
  • Bed width 400mm
  • Spindle bore 103mm
  • Spindle nose ISO-C11 or ISO-D11
  • Spindle speeds 9 - 1275 rpm (18 steps); 16 - 81 rpm (6 steps)
  • Threads range: Metric 0.5 - 112mm/rev (72 kinds); Inch 56 - 1/4 t/inch (72 kinds); Module 0.5 - 7mm (36 kinds); Diametral 56 - 4DP (36 kinds)
  • Longitudinal feeds range 0.073 - 4.066 mm/rev (72 kinds)
  • Cross feed range 0.036 - 2.033 mm/rev (72 kinds)
  • Longitudinal leadscrew pitch 12mm / 2 TPI
  • Section of tool 32 x 32mm
  • Cross slide travel 325mm
  • Compound rest travel 110mm
  • Carriage diameter of tailstock sleeve 90mm
  • Taper of tailstock sleeve Morse No. 6
  • Travel of tailstock sleeve 150mm
  • Cross adjustment range 10mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
