Zhongyang Sams Lathe


China LY6260B/2000 Lathe

NLLSJ003:

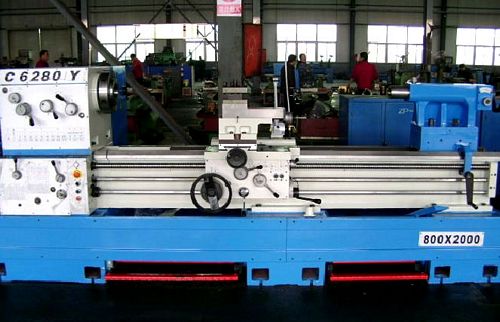

New, China LY6260B/2000 Lathe

  • Between centers 2000mm
  • Swing over bed 600mm
  • Swing over cross slide 225mm
  • Swing over gap 530mm
  • Effective length of gap 260mm
  • Bed width 330mm
  • Spindle hole 65mm
  • Spindle nose ISO-C6 or ISO-D6
  • Spinder taper Metric 70mm
  • Spindle speeds 22 - 1800 rpm (15 steps)
  • Threads range: Metric 0.5 - 28mm (66 kinds); Inch 1 - 56 inch (66 kinds); Module 0.5 - 3.5mm (33 kinds); Diametral 8 - 56 DP (33 kinds)
  • Longitudinal feeds range 0.072 - 4.038 mm/rev (0.0027 - 0.15 inch/rev) (66 kinds)
  • Cross feed range 0.036 - 2.019 mm/rev (0.00213 - 0.075 inch/rev) (66 kinds)
  • Rapid travelling speed of carriage 5 m/min (16.4 ft/min)
  • Leadscrew size: Diameter pitch 35mm/6mm
  • Cross slide travel 300mm
  • Compound rest travel 130mm
  • Taper of tailstock sleeve Morse No. 5
  • Diameter / travel of tailstock sleeve 75mm/120mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
