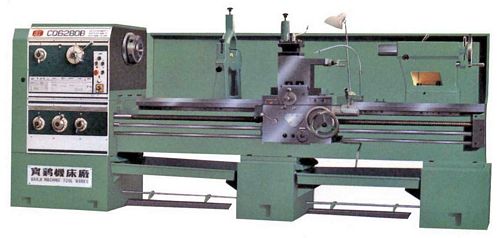

China CQ6280Cx3000 Gap Bed Lathe


New, China CQ6280Cx3000 Gap Bed Lathe

  • Max. length of workpiece 3000mm
  • Swing over bed 800mm
  • Swing over cross slide 560mm
  • Swing in gap 1000mm
  • Length in gap 240mm
  • Width of bed 510mrn
  • Spindle nose ISO702/II No. 8 Camlock
  • Spindle bore 105mm dia.
  • Taper of spindle bore 113mm dia., 1:20
  • Range of spindle speeds 30 - 1400 rpm, 12steps
  • Max. output of spindle torque 1400 N.m
  • Max. travel of compound rest 145mm
  • Max. travel of cross slide 320mm
  • Leadscrew pitch 12mm or 2TPl
  • Section of tool 25 x 25mm
  • Longitudinal quick moving speed 4.5 m/min, 50Hz; 5.4 m/min, 60Hz
  • Crosswise quick moving speed 1.9 m/min, 50Hz; 2.3 m/min, 60Hz
  • Longitudinal feeds range 93 kinds, 0.028 - 6.43 mm/rev
  • Cross feeds range 93 kinds, 0.012 - 2.37 mm/rev
  • Metric threads range 48 kinds, 0.5 - 224 mm
  • Inch threads range 49 kinds, 72 - 1/8 TPI
  • Module threads range 42 kinds, 0.5 - 122 MP
  • Diametral threads range 45 kinds, 56 - 1/4 DP
  • Dia. of tailstock sleeve 75mm dia.
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
