Zhongyang Sams Lathe

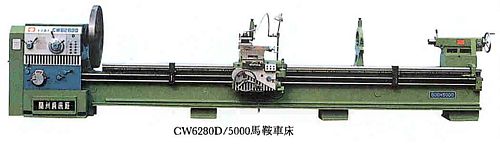

China CW6280Dx5000 Lathe

NLLHG001:

New, China CW6280D x 5000 Lanzhou Lathe

  • Maximum length of workpiece 5000mm
  • Swing over bed 800mm
  • Swing in gap 1000mm
  • Effective width of gap 300mm
  • Swing over carriage 520mm
  • Range of spindle speeds 18 steps, 6 - 800 rpm
  • Taper hole of spindle 120mm
  • Diameter of spindle thru hole 105mm
  • Longitudinal feeds (72) 0.1 - 24mm
  • Transverse feeds (72) 0.05 - 12mm
  • Metric threads (51) 1 - 240mm
  • Whitworth threads (27) 14 - 1 T.P.I.
  • Module threads (53) 0.5 - 120mm
  • Diametral pitch threads (24) 28 - 1 D.P.
  • Morse taper of tailstock quill 6
  • Maximum travel of tailstock quill 300mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
