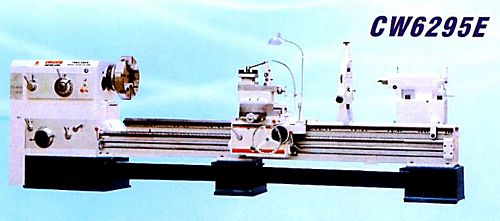

China CW6295E/3000 Gap Bed Lathe

NLLGZ145:

New, China CW6295E/3000 Gap Bed Lathe

  • Between centre 3000mm
  • Swing over bed 950mm
  • Swing over carriage 630mm
  • Swing in gap 1120mm
  • Bed width 550mm
  • Spindle thru-bore diameter 105mm
  • Diameter and taper of spindle bore 115mm 1:20
  • Taper of center sleeve Morse No. 5
  • Spindle speeds 6 - 800 r/min, off 18
  • Max output torque at main spindle 3040 N.m
  • Longitudinal feeds 0.1 - 24.3 mm/r
  • Transverse feeds 0.05 - 12.5 mm/r
  • Leadscrew pitch 12mm (2 TPI)
  • Threads: Metric 1 - 240 mm (50 kinds); Whitworth 14 - 1 TPI (26 kinds); Module 0.5 - 120mm (53 kinds); Diametric 28 - 1 DP (24 kinds)
  • Max travel of cross slide 420mm
  • Max travel of compound rest slide 200mm
  • Cross section of tool shank 32 x 25mm
  • Longitudinal rapid travel speed 4 m/min
  • Transverse rapid travel speed 1.933 m/min
  • Sleeve diameter 100mm
  • Morse taper of sleeve bore No. 6
  • Morse taper of sleeve bush bore No. 5
  • Max sleeve tailstock 250mm
  • Main motor 11 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
