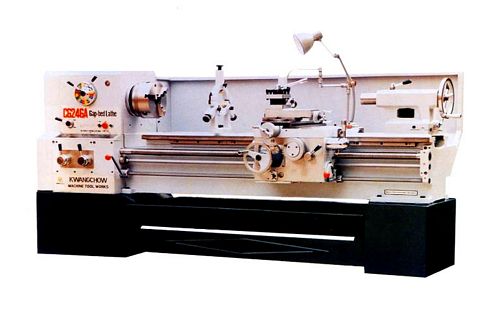

New, China C6256A/1500 Gap Bed Lathe
- Between centre 1500mm
- Swing over bed 560mm
- Swing over carriage 330mm
- Swing in gap 810mm
- Gap length 254mm
- Centre height 280mm
- Thru-hole diameter 80mm
- Spindle speed: (50 Hz) 19-1600 r/min; (60 Hz) 20-1700 r/min (16 steps)
- Cross travel 285mm; Compound rest slide travel 160mm
- Max travel 180mm
- Inside taper MT5
- Main motor 5.5 / 7.5 kw
- Threads range: Metric 0.45-20mm (30 kinds); Inch 80-1.3/4" n/I (35 kinds); Module 0.25-10mm (25 kinds); Diametric 160-3.1/2" DP (30 kinds)
- Feeds change 138 steps
- Longitudinal feed per spindle rev 0.04-2.16mm; Cross feed 0.02-1.08mm
- Carriage rapid traverse 4000 mm/min
- Overall Dimensions: 3,025 mm (L) x 1,110 mm (W) x 1,350 mm (H)
- Weight approximately 2.2 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
