China CF61160A/1500 Horizontal Lathe

NLLFT014:

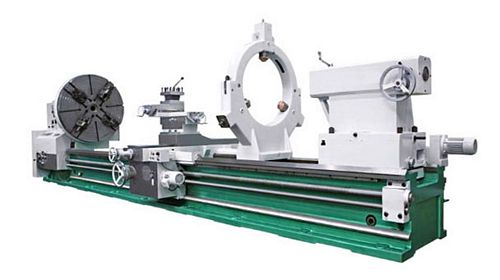

New, China CF61160A/1500 Horizontal Lathe

  • Between centers 1500mm
  • Swing over bed 1600mm
  • Swing over carriage 1250mm
  • Max weight of workpiece 6-8 ton
  • Bed width 755mm
  • Spindle bore diameter 100mm
  • Taper of spindle nose 1:20
  • Spindle speeds 6-272 rpm; 4.25-192 rpm
  • Spindle speeds steps: Forward 12; Reverse 12
  • Range of feed per spindle revolution: Longitudinal 0.057-12.726 mm; Cross 0.027-6.096 mm
  • Thread range: Metric 1-224 mm (46 kinds); Whitworth 28-1 TPI (46 kinds); Module 0.25-56 mm (37 kinds)
  • Steady rest Ø50-470mm
  • Tool shank section 45 x 45mm
  • Max traverse of top slide 350mm
  • Rapid moving speed of tool post: Longitudinal 3.8 m/min; Cross 1.9 m/min
  • Diameter/Traverse of center sleeve 140mm/300mm
  • Tailstock taper Morse No. 6
  • Main motor 22 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
