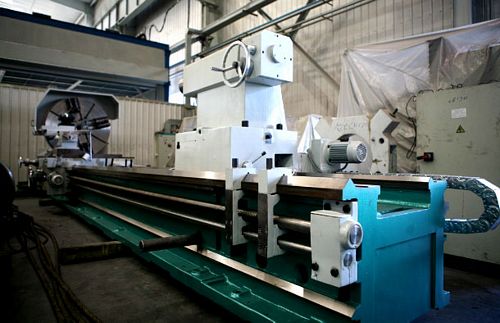

China CF61160H/6000 Horizontal Lathe

NLLFT012:

New, China CF61160H/6000 Horizontal Lathe

  • Between centres 6000mm
  • Swing over bed 1600mm
  • Swing over saddle 1250mm
  • Max weight of work piece 18-20 ton
  • Width of bed 1100mm
  • Spindle speed 3-136 r/min (12 steps)
  • Max torque 2700 kgm
  • Tool shank 45 x 45mm
  • Spindle diameter 240mm (front)
  • Spindle nose A2-15 / A2-20
  • Spindle taper Metric 140
  • Diameter of spindle hole 100mm
  • Traverse of top tool post 300mm; cross slide 850mm
  • Longitudinal rapid moving speed 3800 mm/min
  • Cross rapid moving speed 1900 mm/min
  • No. of feed for tool post 48
  • Feed range of tool post (mm/r): Longitudinal 0.057-12.726; Cross 0.027-6.096
  • Diameter of tailstock sleeve 240mm (Self-rotating spindle centres are equipped)
  • Taper hole of tailstock centre 80; 1:7
  • Tailstock traverse 250mm
  • Range of threads: Metric 1-224 mm (46 kinds); BSP 28-1 tooth/inch (46 kinds); Module 0.25-56mm (37 kinds)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
