China CF61160A/5000 Horizontal Lathe

NLLFT005:

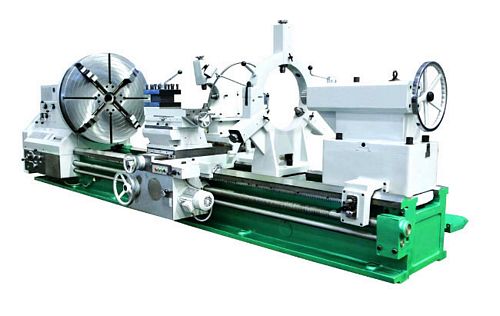

New, China CF61160A/5000 Horizontal Lathe

  • Between centres 5000mm
  • Max swing over bed 1600mm
  • Max swing over carriage 1250mm
  • Max weight of work piece between two centres 6-8 ton
  • Width of bed 755mm
  • Spindle bore diameter 100mm
  • Taper of spindle nose 1:20
  • Spindle speeds 4.25-192 rpm (forward & reverse 12 steps)
  • Range of feed per spindle revolution: (48 kinds) Longitudinal 0.057-12.726mm; Cross 0.027-6.096mm
  • Range of threads: Metric 1-224mm (46 kinds); Whitworth 28-1 TPI (46 kinds); Module 0.25-56mm (37 kinds)
  • Steady rest diameter 50-470mm
  • Section of tool shank 45x45 mm
  • Max travel of top slide 350mm
  • Rapid moving speed of tool post: Longitudinal 3.8 m/min; Cross 1.9 m/min
  • Diameter of centre sleeve 140mm
  • Traverse of centre sleeve 300mm
  • Tailstock taper Morse No. 6
  • Main motor 22 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
