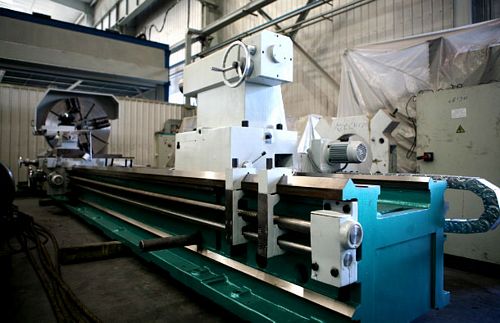

New, China CF61180H/14000 Horizontal Lathe
- Between centres 14000mm
- Swing over bed 1800mm
- Swing over saddle 1450mm
- Max weight of work piece 18-20 ton
- Width of bed 1100mm
- Spindle speed 3-136 r/min (12 steps)
- Max torque 2700 kgm
- Tool shank 45 x 45mm
- Spindle diameter 240mm (front)
- Spindle nose A2-20
- Spindle taper Metric 140
- Diameter of spindle hole 100mm
- Traverse of top tool post 300mm; cross slide 950mm
- Longitudinal rapid moving speed 3800 mm/min
- Cross rapid moving speed 1900 mm/min
- No. of feed for tool post 48
- Feed range of tool post (mm/r): Longitudinal 0.057-12.726; Cross 0.027-6.096
- Diameter of tailstock sleeve 240mm (Self-rotating spindle centres are equipped)
- Taper hole of tailstock centre 80; 1:7
- Tailstock traverse 250mm
- Range of threads: Metric 1-224 mm (46 kinds); BSP 28-1 tooth/inch (46 kinds); Module 0.25-56mm (37 kinds)
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
