Zhongyang Sams Lathe

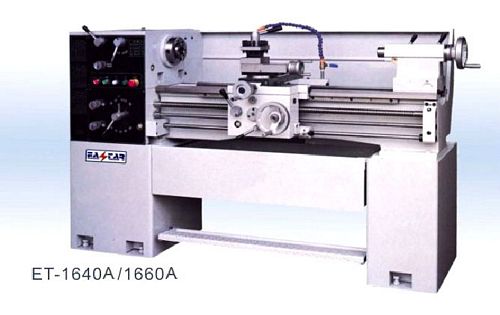

Taiwan ET-1660A High Speed Precision Lathe

NLLES088:

New, Taiwan ET-1660A High Speed Precision Lathe

  • Between centers 1500mm
  • Swing over bed 400mm
  • Swing over cross slide 242mm
  • Height 200mm
  • Swing in gap 552mm
  • Width in front of face plate 160mm
  • Bed (width x length) 260 x 2265 mm
  • Spindle bore 55mm
  • Spindle nose D1-6 Camlock
  • Morse taper in nose MT#6
  • Morse taper in sleeve MT#4
  • Spindle speeds range 50-2000 rpm, off 12
  • Quill diameter / travel: 52mm / 110mm
  • Morse taper MT#4
  • Graduations 0-100mm; set over  ±15mm
  • Cross slide : width 150mm; travel 190mm
  • Top slide: width 95mm; travel 90mm
  • Leadscrew: diameter 30mm; thread (metric type) 6mm PITCH; (Imperial type) 4 TPI
  • Threads (Imperial type): Metric (32) 0.4-7 mm PITCH; Inch (32) 4-56 TPI; Module (32) 0.4-7 mm MOD; DP (32) 8-120 DP
  • Threads (Imperial type): Metric (32) 0.4-7 mm PITCH; Inch (32) 4-56 TPI; Module (27) 0.2-3.5 mm MOD; DP (32) 8-112 DP
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
