Taiwan S480x1500G High Speed Precision Lathe

NLLES086:

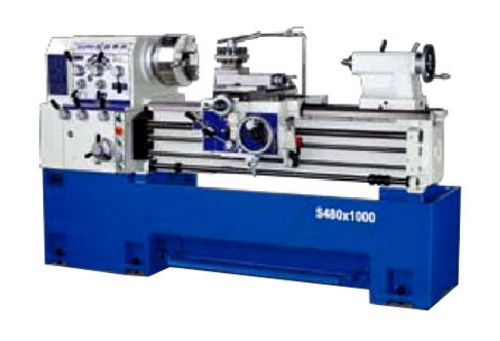

New, Taiwan S480x1500G High Speed Precision Lathe

  • Between center 1500mm
  • Swing over bed 470mm
  • Swing over cross slide 280mm
  • Center height 235mm
  • Swing over gap 690mm
  • Bed width 300mm
  • Spindle nose ASA D1-6
  • Spindle bore 58mm
  • Taper of spindle bore MT 6
  • Spindle speed 20-2000 rpm, 12 steps
  • Threads range: Inch 4-56 TPI; Metric P0.5-P7
  • Feeds range: Longitudinal 0.05-0.82 mm; Cross 0.02-0.4mm
  • Leadscrew diameter 35mm
  • Leadscrew pitch 4 TPI or 6mm
  • Taper of tail center MT 4
  • Tail spindle: Travel 150mm; Diameter 68mm
  • Travel: Compound rest 125mm; Cross slide 245mm
  • Main motor 7.5 HP
  • Coolant  pump 1/8 HP
  • Overall Dimensions: 2,650 mm (L) x 810 mm (W) x 1,220 mm (H)
  • Weight approximately 2.1 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
