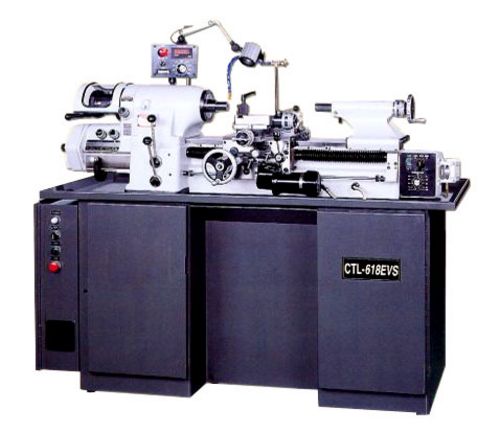

Taiwan CTL-618EVS High Speed Toolroom Lathe

NLLES084:

New, Taiwan CTL-618EVS High Speed Toolroom Lathe

  • Between centre 457mm
  • Swing over bed 280mm
  • Swing over cross slide 152.4mm
  • Swing over carriage 230mm
  • Spindle nose diameter 55.5mm
  • Spindle nose I.D/O.D: 5C (10°)/4° taper
  • Hole through spindle 31.75mm
  • Bar stock diameter (5C collet) 27mm
  • Variable spindle speeds 50-4000 rpm
  • Carriage power feed range 5-102mm
  • Cross slide power feed range 8-178mm
  • Cross slide travel 152.4mm
  • Quick action compound slide travel 2.5mm
  • Compound slide travel 76mm
  • Tailstock spindle travel 95mm
  • Range of threads 0.275-2.7mm (108-11 TPI)
  • No. of threads changes 36
  • Inverter YASKAWA motor 3 HP
  • Coolant pump 1/8 HP
  • Overall Dimensions: 1,850 mm (L) x 750 mm (W) x 1,700 mm (H)
  • Weight approximately 1.1 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
