Zhongyang Sams Lathe


Taiwan S430x2000G High Speed Precision Lathe

NLLES083:

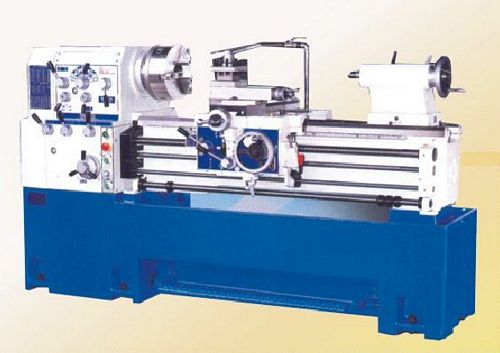

New, Taiwan S430x2000G High Speed Precision Lathe

  • Between centers 2200mm
  • Swing over bed 430mm
  • Swing over cross slide 240mm
  • Center height 215mm
  • Swing over gap 650mm
  • Bed width 300mm
  • Spindle nose ASA D-16
  • Spindle bore 58mm
  • Taper of spindle bore MT6
  • Spindle speed 20 - 2000 RPM (12 steps)
  • Threads range: Inch 4 - 56 TPI, Metric P0.5 - P7
  • Longitudinal feeds 0.05 - 0.82 mm, Cross feeds 0.02 - 0.4 mm
  • Leadscrew diameter 35mm
  • Leadscrew pitch 4 TPI or 6mm
  • Taper of tail center MT4
  • Tail spindle travel 150mm / diameter 58mm
  • Compound rest travel 125mm
  • Cross slide travel 245mm
  • Main motor 5 HP
  • Coolant pump 1/8 HP
  • Overall Dimensions: 3,420 mm (L) x 810 mm (W) x 1,190 mm (H)
  • Weight approximately 2.6 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
