Zhongyang Sams Lathe


Taiwan ET-660x3000G Heavy Duty Precision Lathe

NLLES040:

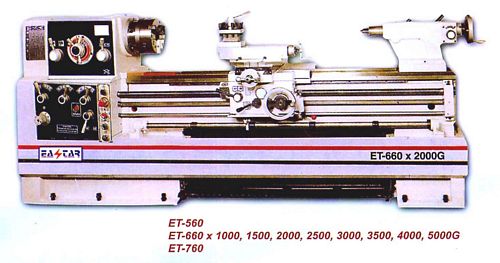

New, Taiwan ET-660x3000G Heavy Duty Precision Lathe

  • Taiwan ET-660x3000G Precision Lathe
  • Heavy Duty Machine
  • Swing over bed 660mm
  • Distance between center 3000mm
  • Center height 330mm
  • Swing over cross slide 470mm
  • Swing over gap 1000mm
  • Spindle bore to pass 86mm or 104mm
  • Spindle nose D1-8" camlock oar A1-8"
  • 12 speeds 25 - 1250 rpm (60 Hz)
  • Motor 3 phase 7.5 HP
  • Leadscrew: diameter 45mm, thread 2 T.P.I. or 4 T.P.I. or 6mm pitch
  • Threads: Metric P 0.8 - 14mm, Inch 2 - 28 T.P.I., Module 0.57 MOD, 4 - 56 D.P.
  • Longitudinal feeds metric (36 Nos.) 0 05 - 0.70 mm/rev
  • Cross feeds metric (36 Nos.) 1/2
  • Cross slide: width 230mm, travel 360mm
  • Top slide width 150mm, travel 255mm
  • Tailstock: quill-outer diameter 75mm, travel 180mm, morse taper MT No. 5
  • Weight approx. 3600 kgs
  • Standard accessories: 1pc. Gap bed, 2 pcs driving motor 7.5 HP, 1 pc centers M.T. 5, 1 pc center sleeve, 1 pc tool box & kits, 1 pc chuck back plate, 1 pc coolant equipment, 1 pc foot operated brake, 1 pc steady rest, 1 pc follow rest, 1 pc 3-position stop bar
  • Weight approximately 3.6 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
