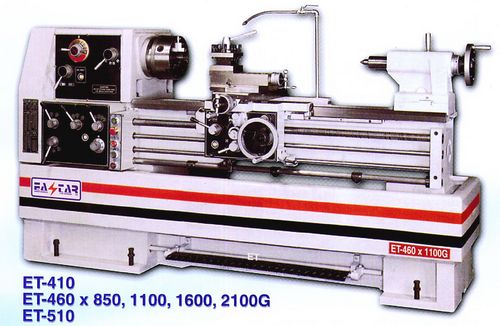

Taiwan ET-460x1600G High Speed Precision Lathe

NLLES011:

New, Taiwan ET-460x1600G High Speed Precision Lathe

  • Swing over bed 460mm
  • Distance between center 1600mm
  • Swing over cross slide 270mm
  • Swing over gap 710mm
  • Gap in front of faceplate 180mm
  • Headstock type of spindle nose A1-6 or D1-6 CAM
  • Headstock taper of spindle nose MT6
  • Headstock: 12 spindle speeds ranging 36 - 2000 rpm
  • Headstock spindle bore 65mm for A1-6 spindle, 60mm for D1-6 spindle
  • Carriage: cross slide travel 290mm,  compound rest travel 127mm
  • Tailstock: quill travel 130mm, quill diameter 65mm, taper of center MT4
  • Bed width 330mm
  • Leadscrew 35mm diameter, pitch 6mm or 4 TPI
  • No. of feed change 32 no.
  • Longitudinal feed range 0 04 - 1.0 mm/rev
  • Cross feed range 0.0015 - 0.040 mm/rev
  • Threads: inch 2 - 72 TPI, Metric P0.2 - 14, D.P. 8 -44, Module pitch 0.3 - 3.5
  • Spindle drive motor 5 HP
  • Coolant pump motor 1/8 HP
  • Standard accessories: gap bed, centers, tool box & kits, coolant equipment, steady rest, 3-position stop bar, driving motor, center sleeve, chuck back plate, foot operated brake, follow rest
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
