Zhongyang Sams Lathe

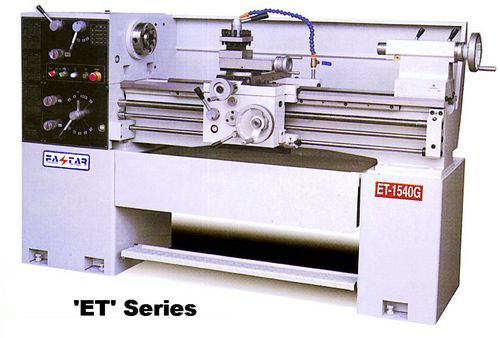

Taiwan ET-1440G Gear Head Type Precision Bench Lathe

NLLES002:

New, Taiwan ET-1440G Gear Head Type Precision Bench Lathe

  • Gear Head Type
  • Swing over bed 360mm
  • Distance between centers 1000mm
  • Swing over cross slide 225mm
  • Swing over gap 520mm
  • Headstock: type of spindle nose D1-4 CAMLOCK
  • Headstock: taper of spindle nose MT5
  • Headstock: 9 spindle speeds ranging 82 - 2000 rpm
  • Headstock spindle bore 40mm
  • Carriage: cross slide travel 175mm, compound rest travel 100mm
  • Tailstock: quill travel 110mm, quill diameter 40mm, taper of center MT3
  • Bed width 190mm
  • Leadscrew: 24mm diameter, pitch 4mm or 4 TPI
  • Longitudinal feed range 0 068 - 0.936 mm/rev
  • Cross feed range 0.034 - 0.468 mm/rev
  • Threads: Inch 4 - 56 TPI, Metric 0.4 - 7mm
  • Spindle drive motor 3 HP / 3 phase or 2 HP / Single phase
  • Coolant pump motor 1/8 HP
  • Standard accessories: gap bed, centers, center sleeve, tool box & kits, chuck back plate, coolant equipment, foot operated brake, 4-way tool post, rear splash guard, steady rest, follow rest
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
