Zhongyang Sams Lathe

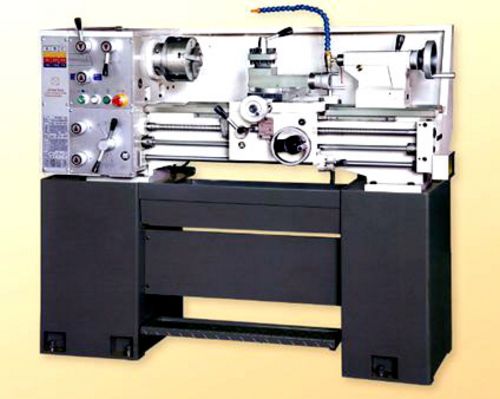

Taiwan ET-1340G High Speed Precision Lathe

NLLES001:

New, Taiwan ET-1340G High Speed Precision Lathe

  • Swing over bed 330mm
  • Distance between centers 1000mm
  • Swing Over Saddle 190mm
  • Swing In Gap 490mm
  • Bed Width 190mm
  • Spindle Bore 40mm
  • Spindle Nose Type D1-4 Camlock
  • Spindle Nose Taper MT5
  • Spindle Speeds 82-2000 RPM, off 9
  • Cross Slide Travel 165mm
  • Compound Rest Travel 100mm
  • Tailstock quill Travel 100mm
  • Taper of Tailstock MT3
  • Longitudinal Feed Range 0.068-0.936 mm/rev, off 12
  • Cross Feed Range 0.034-0.468 mm/rev, off 12
  • Inch Threads 4-56 TPI, off 32
  • Metric Threads 0.4-7.0mm, off 30
  • Overall Dimensions: 1,855 mm (L) x 762 mm (W) x 1,473 mm (H)
  • Weight approximately 600 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
