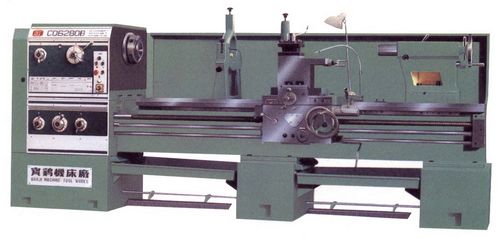

China CQ6280Cx3000 High Speed Precision Gap Bed Lathe
- Swing over bed 800mm
- Swing over cross slide 560mm
- Swing in gap 1000mm, Length in gap 240mm
- Max. length of workpiece 3000mm
- Width of bed 510mrn
- Spindle nose IS0702/II No. 8 Camlock
- Spindle bore 105mm dia.
- Taper of spindle bore 113mm dia., 1:20
- Range of spindle speeds 30-1400rpm, 12steps
- Max. output of spindle torque 1400N.m
- Max. travel of compound rest 145mm
- Max. travel of cross slide 320mm
- Leadscrew pitch 12mm or 2TPl
- Section of tool 25x25mm
- Longitudinal quick moving speed 4.5m/min, 50Hz; 5.4m/min, 60Hz
- Crosswise quick moving speed 1.9m/min,50Hz:; 2.3m/min,60Hz
- Longitudinal feeds range 65 kinds, 0.063-2.52mm/rev
- Cross feeds range 65 kinds, 0.027-1.07m
- Metric threads range 22 kinds, 1-14mm
- Inch threads range 25 kinds, 20-2TPI
- Module threads range 18 kinds, 0.5-7mm
- Diametral threads range 24 kinds, 56-4DP
- Dia. of tailstock sleeve 75mm dia.
- Morse taper of tailstock sleeve MT5
- Travel of tailstock sleeve 150mm
- Cross adjustment ±15mm
- Power of main motor 7.5KW (10HP), 3 Phase, 1450rpm/50Hz; 1750 rpm/60Hz
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
