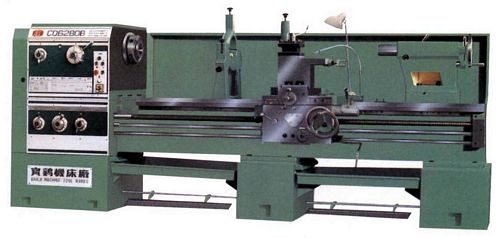

China CQ6280Bx3000 Gap Bed Lathe

NLLEA103:

China CQ6280Bx3000 High Speed Precision Gap Bed Lathe

  • Swing over bed 800mm
  • Swing over cross slide 560mm
  • Swing in gap 1000mm, Length in gap 240mm
  • Max. length of workpiece 3000mm
  • Width of bed 510mrn
  • Spindle nose IS0702/II No. 8 Camlock
  • Spindle bore 82mm dia.
  • Taper of spindle bore 90mm dia., 1:20
  • Range of spindle speeds 9-1400rpm, 24 steps
  • Max. output of spindle torque 1400N.m
  • Max. travel of compound rest 145mm
  • Max. travel of cross slide 320mm
  • Leadscrew pitch 12mm or 2TPl
  • Section of tool 25x25mm
  • Longitudinal quick moving speed 4.5m/min, 50Hz; 5.4m/min, 60Hz
  • Crosswise quick moving speed 1.9m/min,50Hz:; 2.3m/min,60Hz
  • Longitudinal feeds range 93 kinds, 0.028-6.43mm/rev
  • Cross feeds range 93 kinds, 0.012-2.37mm/rev
  • Metric threads range 48 kinds, 0.5-224rnm
  • Inch threads range 49 kinds, 72-1/8TPI
  • Module threads range 42 kinds, 0.5-122mm
  • Diametral threads range 45 kinds, 56-1/4DP
  • Dia. of tailstock sleeve 75mm dia.
  • Morse taper of tailstock sleeve MT5
  • Travel of tailstock sleeve 150mm
  • Cross adjustment ±15mm
  • Power of main motor 7.5KW (10HP), 3 Phase, 1450rpm/50Hz; 1750 rpm/60Hz
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
