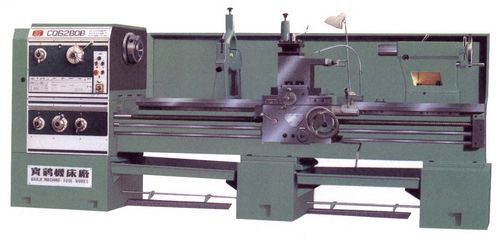

China CQ6280Bx2000 High Speed Precision Gap Bed Lathe
- Swing over bed 800mm
- Swing over cross slide 560mm
- Swing in gap 1000mm, Length in gap 240mm
- Max. length of workpiece 2000mm
- Width of bed 510mrn
- Spindle nose IS0702/II No. 8 Camlock
- Spindle bore 82mm dia
- Taper of spindle bore 90mm dia, 1:20
- Range of spindle speeds 9-1400rpm, 24 steps
- Max. output of spindle torque 1400N.m
- Max. travel of compound rest 145mm
- Max. travel of cross slide 320mm
- Leadscrew pitch 12mm or 2TPl
- Section of tool 25x25mm
- Longitudinal quick moving speed 4.5m/min, 50Hz; 5.4m/min, 60Hz
- Crosswise quick moving speed 1.9m/min,50Hz:; 2.3m/min,60Hz
- Longitudinal feeds range 93 kinds, 0.028-6.43mm/rev
- Cross feeds range 93 kinds, 0.012-2.37mm/rev
- Metric threads range 48 kinds, 0.5-224rnm
- Inch threads range 49 kinds, 72-1/8TPI
- Module threads range 42 kinds, 0.5-122mm
- Diametral threads range 45 kinds, 56-1/4DP
- Dia. of tailstock sleeve 75mm dia.
- Morse taper of tailstock sleeve MT5
- Travel of tailstock sleeve 150mm
- Cross adjustment ±15mm
- Power of main motor 7.5KW (10HP), 3 Phase, 1450rpm/50Hz; 1750 rpm/60Hz
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
