China CS6266B x 3000mm Gap Bed Lathe

NLLEA008:

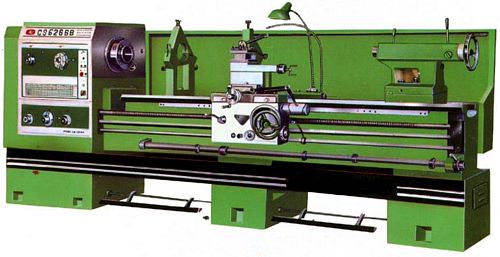

New, China CS6266B x 3000mm Gap Bed Lathe

  • Swing over bed 660mm
  • Swing over cross slide 420mm
  • Swing in gap 870mm
  • Length in gap 240mm
  • Spindle bore 82mm diameter
  • Taper of spindle bore diameter 90mm
  • Range of spindle speeds 9 - 1600 rpm, 24 steps
  • Maximum output of spindle torque 1500N.m
  • Maximum  travel of compound rest 145mm
  • Max. travel of cross slide 310mm
  • Spindle center to tool support 24mm
  • Longitudinal feeds range 93 kinds, 0.028 - 6.43 mm/rev
  • Cross feeds range 93 kinds, 0.012 - 2.37 mm/rev
  • Metric threads range 48 kinds, 0.5 - 224mm
  • Inch threads range 49 kinds, 72 - 1/8 TPI
  • Module threads 42 kinds, 0.5 - 112mm
  • Diametric pitch threads 45 kinds, 56 - 1/4 DP
  • Diameter of tailstock sleeve 75mm diameter
  • Morse taper of tailstock sleeve No. 5
  • Main motor: 10 HP, 3 phase, 50 Hz @ 1450 rpm; 60 Hz @ 1750mm
  • Overall Dimensions: 4,632 mm (L) x 975 mm (W) x 1,350 mm (H)
  • Weight approximately 3.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
