China CW6280E/3000 Gap Bed Lathe

NLLDM141:

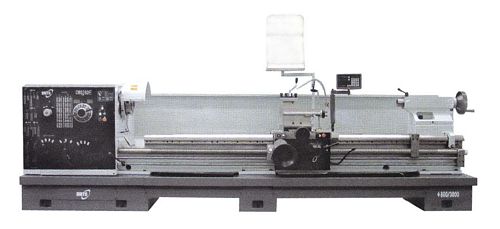

New, China CW6280E/3000 Gap Bed Lathe

  • Between centers 3000mm
  • Swing over bed 800mm
  • Swing over cross slide 520mm
  • Swing in gap 1000mm
  • Gap length (from spindle nose) 465mm
  • Spindle bore 105mm
  • Taper of spindle bore 120mm (1:20) / 140mm (1:20)
  • Spindle nose C11/D11
  • Spindle speed range 7.5-1000 rpm, off 18
  • Width of bedways 550mm
  • Cross slide travel X-axis 493mm
  • Travel of top slide 200mm
  • Section of tool shank 30 x 30mm
  • Range of pitches: Imperial 1-14 TPI; Diametrical 1-28 DP; Metric 1-240mm; Module 0.5-120 MOD
  • Tailstock quill diameter 100mm
  • Tailstock quill taper No. 6 MT
  • Tailstock quill travel 240mm
  • Motor 11 kw (15 HP)
  • Overall Dimensions: 5,130 mm (L) x 1,360 mm (W) x 1,830 mm (H)
  • Weight approximately 4.8 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
