China CW6280C/6000 Gap Bed Lathe

NLLDM092:

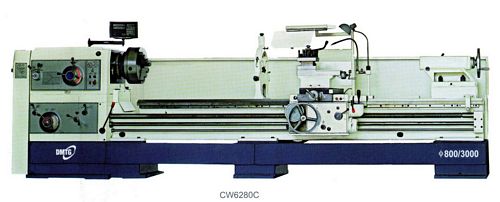

New, China CW6280C/6000 Gap Bed Lathe

  • Max. swing over bed 800mm
  • Max. swing over saddle 520mm
  • Between centres 6000mm
  • Width of gap 320mm
  • Swing over gap 1000mm
  • Width of bed 550mm
  • Spindle speed 7.5 - 1000 rpm (18 speeds)
  • Longitudinal feed 0.1 - 24.3 mm/rev (64)
  • Cross feed 0.05 - 12.15 mm/rev (64)
  • Rapid traverse speed 3.8 m/min
  • Metric thread 1 - 240mm (39)
  • Whitworth thread 14 - 1 TPI (26)
  • Module thread 0.5 - 120mm (53)
  • Diametric pitch thread 28 - 1 (24)
  • Max. travel of cross slide 493mm
  • Travel of top slide 200mm
  • Main motor 11 kW
  • Rapid traverse motor 1.1 kW
  • Coolant pump motor 0.09 Kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
