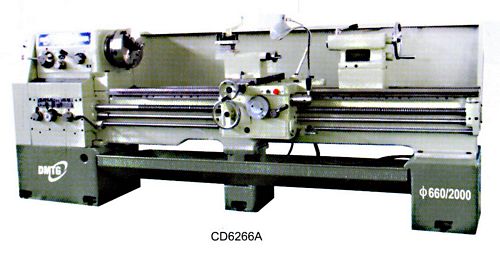

New, China CD6266A/2000 Horizontal Lathe
- Max. swing over bed 660mm
- Max. swing over saddle 430mm
- Max. swing in gap 910mm
- Between centres 2000mm
- Width of bed 394mm
- Spindle Bore 52mm
- Taper of centre sleeve Morse no. 6
- Spindle speed 11 - 1400 rpm / 22 speeds
- Longitudinal feed 0.035 - 2.842 mm/rev
- Cross feed 0.009 - 0.804 mm/rev
- Metric thread 0.5 - 240 (66)
- Whitworth thread 80 - 1/4 (49) TPI
- Module thread 0.25 - 120 (57)mm
- Diametric pitch thread 160 - 7 - 16 DP (50)mm
- Section of tool shank 25 x 25mm
- Travel of top slide 150mm
- Max. travel of cross slide 393mm
- Pitch of longitudinal lead screw 12mm
- Tailstock quill travel 150mm
- Tailstock quill diameter 75mm
- Tailstock quill taper Morse no. 5
- Main motor 7.5 kW / 5.5 kW
- Wooden packing: 3,990 mm (L) x 1,150 mm (W) x 1,900 mm (H)
- Net weight 2,438 kgs; Gross weight 3,153 kgs
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
