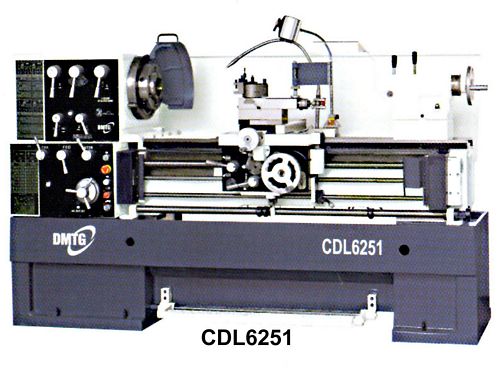

China CDL6251/1500 Gap-Bed Lathe

NLLDM070:

New, China CDL6251/1500 Gap-Bed Lathe

  • Max. swing over bed 510mm
  • Max. swing over saddle 320mm
  • Max. swing in gap 735mm
  • Between centres 1500mm
  • Width of bed 300mm
  • Spindle nose D8
  • Spindle bore 82mm
  • Taper of spindle bore 1:20 (F 90)
  • Spindle speeds 16 -1600 rpm (12 speed)
  • Longitudinal feed 0.06 - 0.82 mm/rev
  • Cross feed 0.017 - 0.242 mm/rev
  • Lead screw diameter 36mm
  • Pitch of lead screw 6mm
  • Tailstock quill diameter 60mm
  • Tailstock quill taper No. 4 MT
  • Max. spindle motor 5.5 kW
  • Overall Dimensions: 2,980 mm (L) x 1,090 mm (W) x 2,000 mm (H)
  • Net weight 2,250 kgs; Gross weight 2,750 kgs
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
