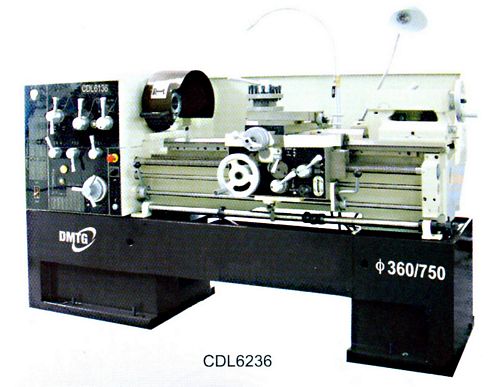

China CDL6236/750 Gap-Bed Lathe


New, China CDL6236/750 Gap-Bed Lathe

  • Max. swing over bed 360mm
  • Max. swing over saddle 180mm
  • Max. swing in gap 590mm
  • Between centres 750mm
  • Width of bed 300mm
  • Spindle nose C6/D6
  • Spindle bore 48mm
  • Taper of spindle bore M6
  • Spindle speeds 32 - 2000 rpm (12 speed)
  • Longitudinal feed 0.06 - 0.82 mm/rev
  • Cross feed 0.017 - 0.242 mm/rev
  • Lead screw diameter 36mm
  • Pitch of lead screw 6mm
  • Tailstock quill diameter 60mm
  • Tailstock quill taper No. 4 MT
  • Max. spindle motor 3/4.5 kW (4/6 HP)
  • Wooden packing: 2,230mm (L) x 1,090 mm (W) x 2,000 mm (H)
  • Net weight 1,228 kgs; Gross weight 1,378 kgs
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
